Understanding Metal Thickness (Gauge)

Joist hangers are typically made from galvanized or stainless steel and are classified by gauge, where:

• Lower gauge number = thicker, stronger metal
• Higher gauge number = thinner, lighter-duty metal

Common Joist Hanger Gauges:

• 3 gauge (~0.25 inches) - Super Heavy-duty structural
• 10 gauge (~0.135 inches) — Heavy-duty structural
• 12 gauge (~0.105 inches) — Standard structural
• 14 gauge (~0.075 inches) — Light structural
• 16 gauge (~0.060 inches) — Light-duty / non-structural

Matching Thickness to Application

1. Light-Duty Applications (14–16 Gauge)

Best for:

• Sheds
• Small platforms
• Non-load-bearing framing
• Decorative outdoor structures

Why use it:
Thinner joist hangers are easier to work with and more cost-effective. However, they are not designed to carry significant loads or withstand high stress over time.

Limitations:

• Lower load capacity
• More susceptible to bending under weight
• Not suitable for decks or primary structural framing

2. Standard Residential Construction (12 Gauge)

Best for:

• Deck joists
• Floor framing
• Porch construction
• Most code-compliant residential builds

Why use it:
12-gauge joist hangers strike a balance between strength and cost. They meet most residential building codes and are commonly used in deck construction.

Key Benefits:

• Strong load-bearing capability
• Widely available
• Compatible with most dimensional lumber sizes

3. Heavy-Duty and Structural Loads (10 Gauge)

Best for:

• Multi-level decks
• Hot tub or spa support framing
• Commercial construction
• High-load or long-span joists

Why use it:
10-gauge hangers provide superior strength and are designed for high-load applications or where safety margins are critical.

Key Benefits:

• Maximum (standard) load capacities
• Reduced deflection
• Better long-term durability under stress

4. Super Heavy-Duty and Structural Loads (3 Gauge)

 Best for:

• High-load or long-span Beams
• High-load rafters (especially in areas that have a high snow load)
• Giving a more "beefy" or industrial look

Why use it:

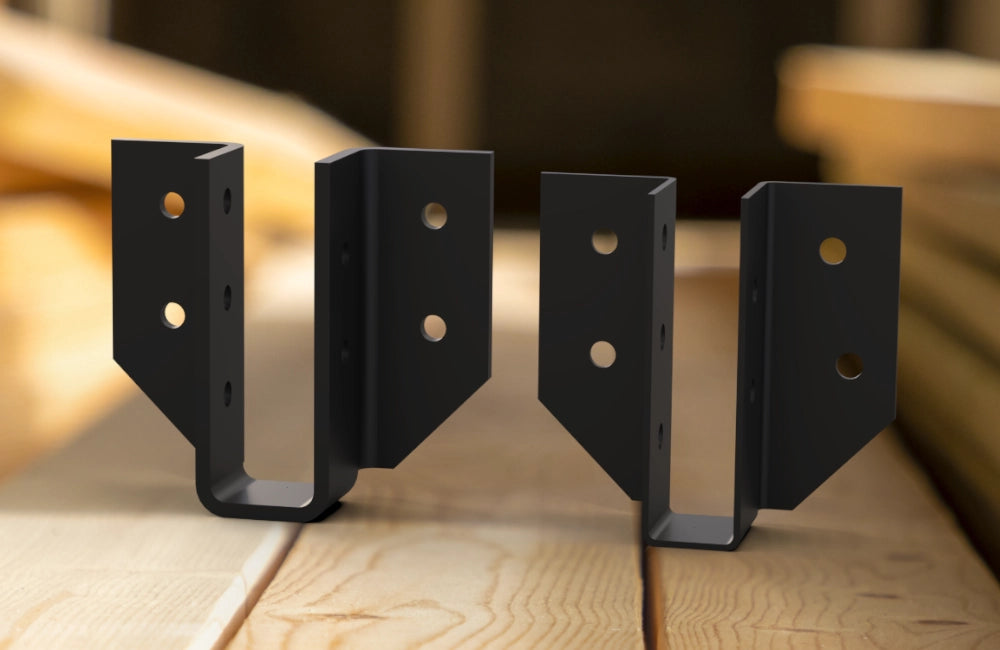

3-gauge (0.25") hangers provide more strength than you typically will ever need in typical home construction builds. These are typically just used to add a more industrial look even when the load could be supported by a 12-gauge hanger. Some customers also prefer the option that can withstand any situation that could possibly be thrown at it.

Fasteners Matter Too

Even the thickest hanger will fail if installed incorrectly.

• Always use manufacturer-approved nails or structural screws
• Never substitute drywall screws
• Match fastener corrosion resistance to hanger material

Final Thoughts

Selecting the right joist hanger thickness is about balancing strength, safety, cost, and environment. For most homeowners, 12-gauge hangers will handle typical deck and framing needs. But when loads increase—or when failure isn’t an option—stepping up to 10-gauge hardware is a smart investment.

If you’re ever unsure, it’s better to overbuild than underbuild, and always refer to manufacturer specifications and local codes before making your final decision.
