SKU: 1,5625x3-JH_ANG-45L
9% off

Angled Joist Hanger Brackets

Sale price $58.99 Regular price $65.00
Shipping calculated at checkout.
Width (Inner Dimensions of Bracket)
Height (Inner Dimension of Bracket)
Bracket Angle

Product Details

Sizes-

  • Width: 1-9/16", 2", 3-9/16", 4", 5-9/16", 6"
  • Height: 3", 4" 5", 6", 7", 8", 9", 10", 11", 12", 13", 14", 15", 16"
  • Angled: 45 Degree (Left), 45 Degree (Right)
  • Custom Sizes and Angles Available Upon Request

More Details-

  • 12-gauge (1/8") or 1/4" thick steel
  • Finished with a thick layer of powder coat paint.
  • Hardware not included. Please view our fastener section.
  • Made in the USA

View Full Description Below for More Details

Full Description

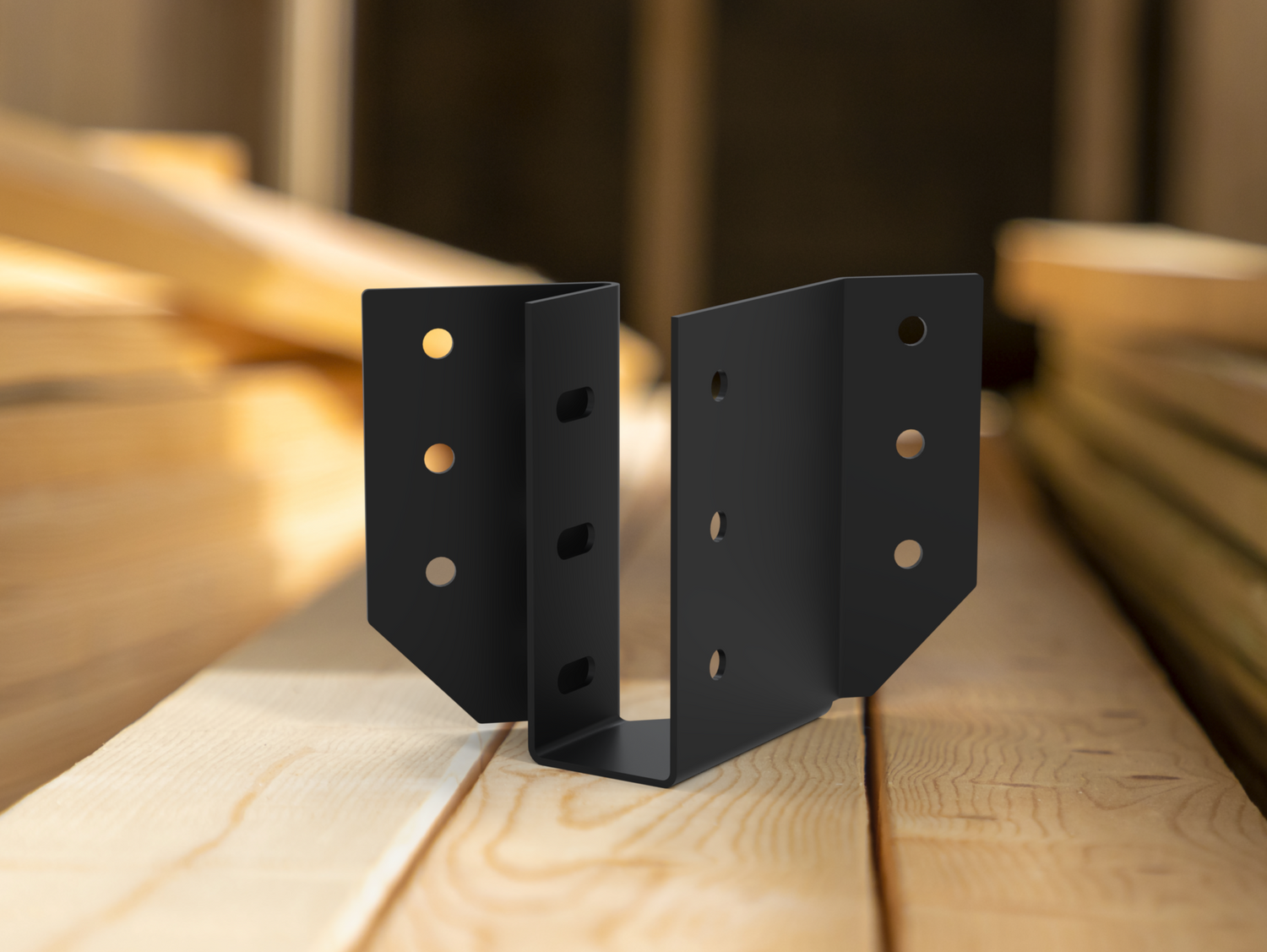

Angled Joist Hangers (Saddle Brackets) - 45 Degree Angled (Left or Right)

This joist hanger is a great supporting bracket for your joists. It also can add a decorative touch to any joist ends. Made from Heavy Duty 12-gauge steel and finished in a super tough baked on powder coat finish with UV inhibitors that will not fade over time like most other paints. Our brackets are made to order, that is why we are able to offer a wide variety of colors and size options. If you have specific bracket needs let us know and we can help.

If you have a different sized beam and need a custom bracket like this, contact us on our "contact us" page and we can quote you.

The holes in the bracket are sized for a 5/16" bolt, and the inside angle holes are slotted so as to screw in a wood screw at an angle.

  • Holes are offset for the cradle that holds the Joist so wood screws do not run into each other
  • Holes are sized for 5/16" bolts (sold separately) - if you need matching colored lag bolts you can purchase them in the link below
  • Bracket flange width is 2" - But if you have a more specific application let us know we may be able to make you a custom order.
  • Pictures are just for reference, actual bracket may look different for different width or height - but the style will remain consistent.

Sizes:

   - Width: 1-9/16", 2", 3-9/16", 4", 5-9/16", 6"

   - Height: 3", 4" 5", 6", 7", 8", 9", 10", 11", 12", 13", 14", 15", 16"

   - Angled: 45 Degree (Left), 45 Degree (Right)

   - *Custom Sizes and Angles Available Upon Request*


Materials- Made of thick 12ga steel sourced from the USA. Painted with a super tough baked on powder coat finish with UV inhibitors that will not fade over time like most other paints. 11 color options available so you can match your decor.


Hole Sizes- Holes large enough for 5/16" bolts. (Hardware sold separately - Available Here)

Material Information

Thickness- 12-gauge steel

Our brackets are made from American made steel and painted with a layer of powdercoat paint. We do not guarantee that our brackets will add total structural strength to your project.
