Regular price $60.00
/

Only 0 items in stock!

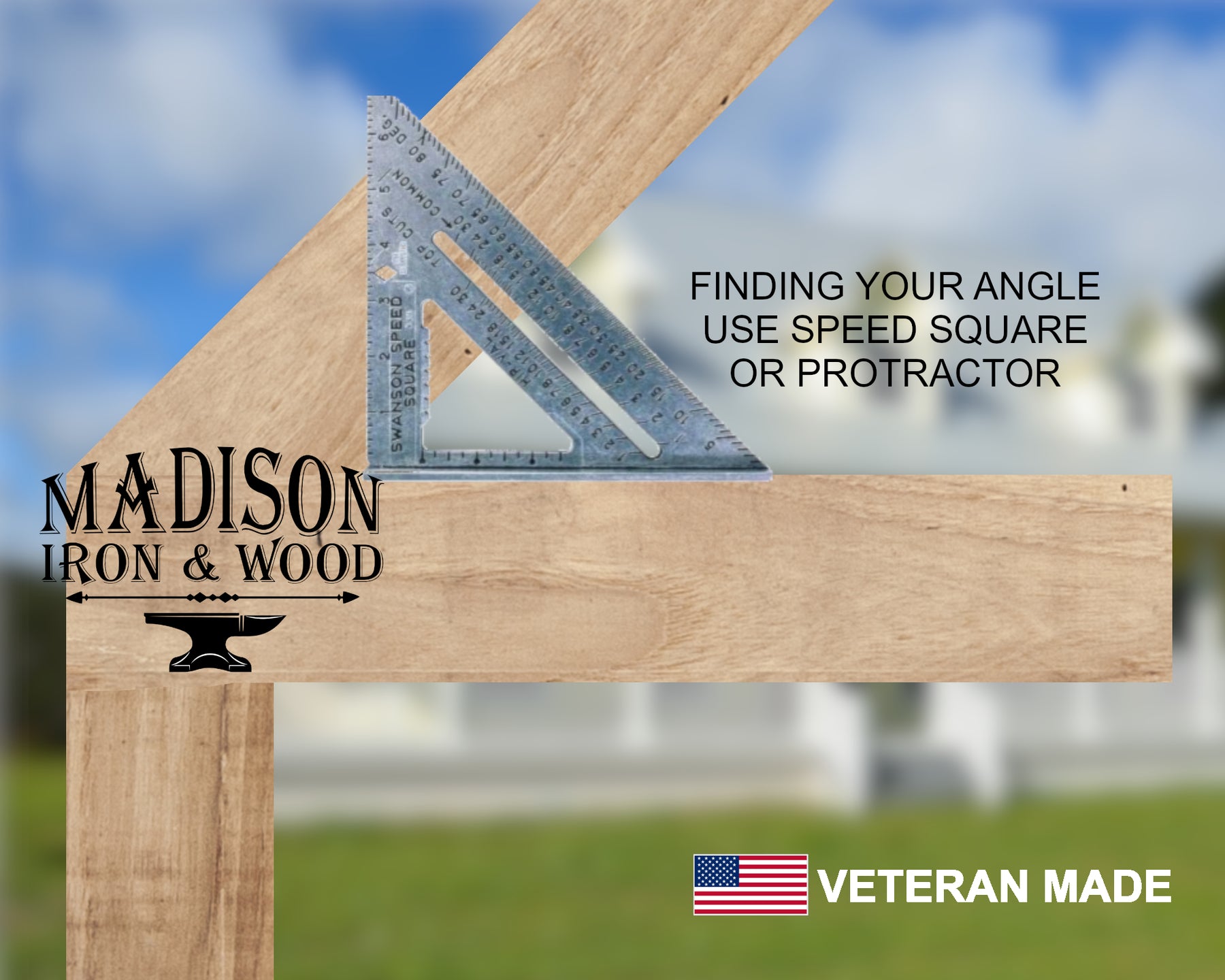

***PLEASE SEE PICTURE ON HOW TO MEASURE YOUR ANGLE NEEDED****

This Heel plate is great for not only helping to support your wood projects, but also adding a decorative touch. Made from either 12 gauge or 1/4" steel. For more aesthetic purposes 12ga is fine, if you are wanting it to be more of a heavy duty supporting member 1/4" would be your better option. Finished in a super tough baked on powder coat finish with UV inhibitors that will not fade over time like most other paints. Our brackets are made to order, that is why we are able to offer a wide variety of colors and size options. If you have specific bracket needs let us know and we can help.

- Designed for 6" boards on all sides - If you have a different configuration, contact us as we can make one for your specific design.
- Finished in a super tough UV-resistant baked on powder coat matte black paint rated for outdoor use, unless bare metal option is chosen.

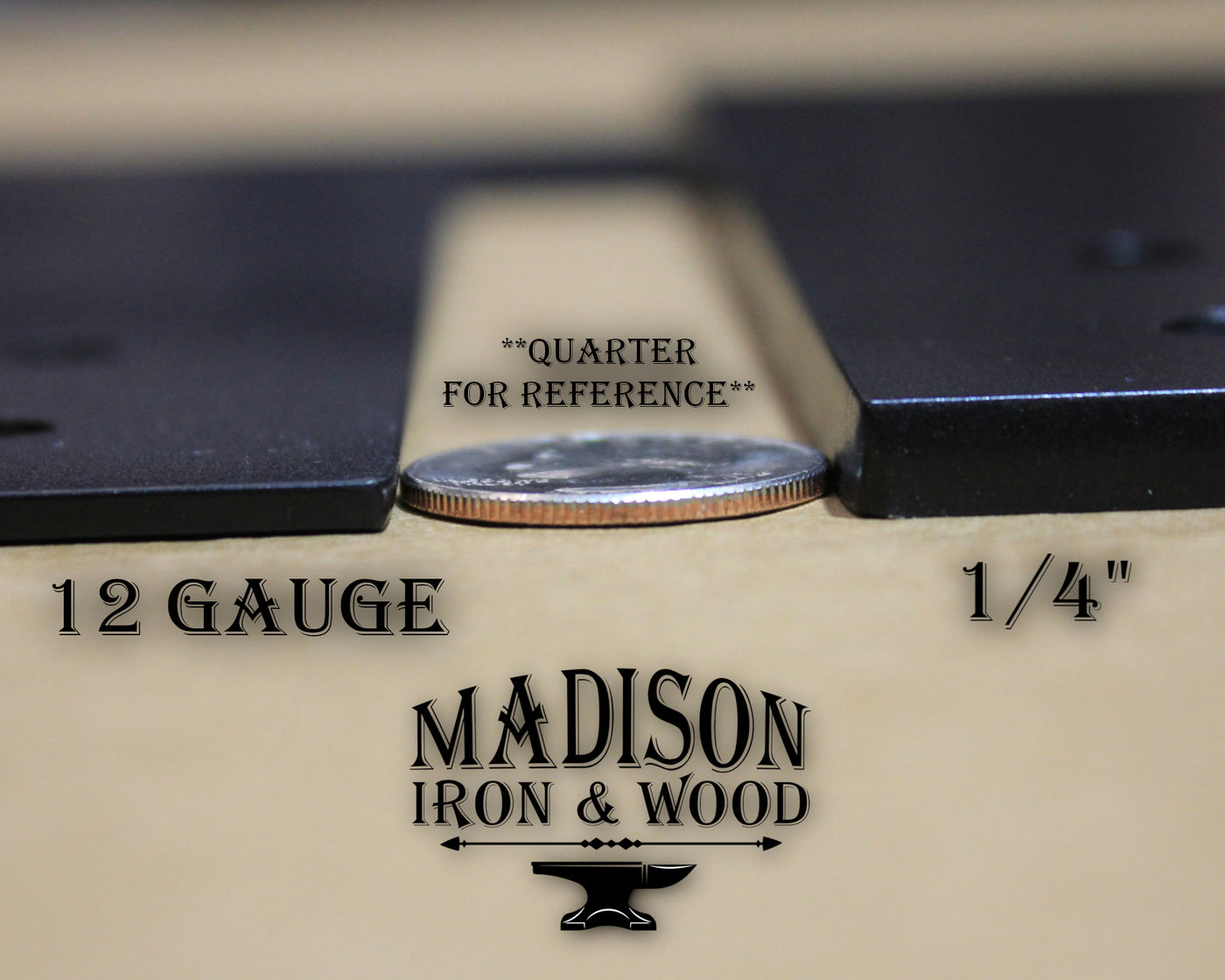

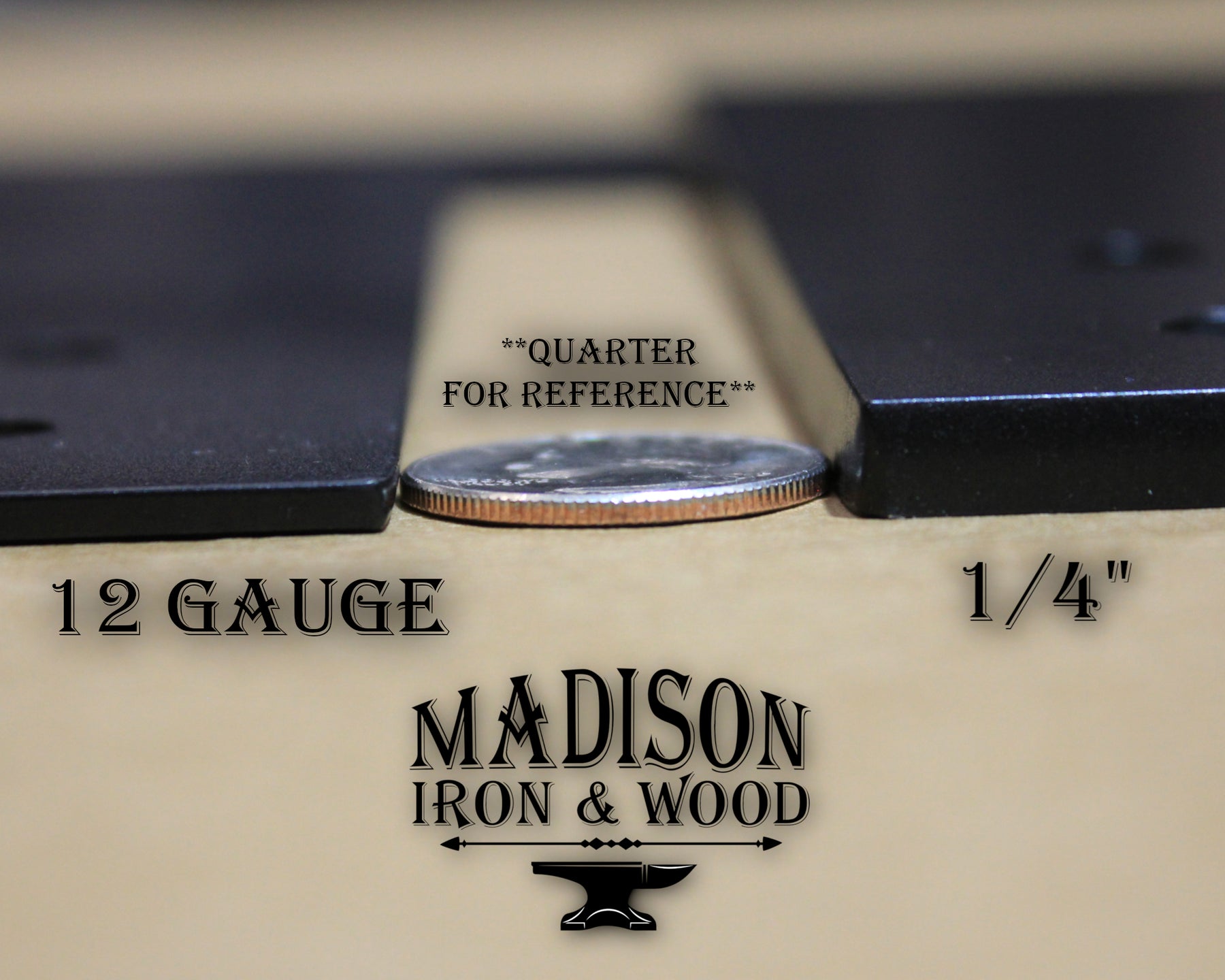

- Your choice of either lighter 12ga steel or 1/4" steel
- Holes large enough for 1/4" or 5/16" Lags - sold separately - If you need a different hole size please let us know and we can accommodate.

Top Leg Roof Pitch/Angle Available
12:12 - 45deg
11:12 - 43deg
10:12 - 40deg
9:12 - 37deg
8:12 - 34deg
7:12 - 30deg
6:12 - 27deg
5:12 - 23deg
4:12 - 18deg

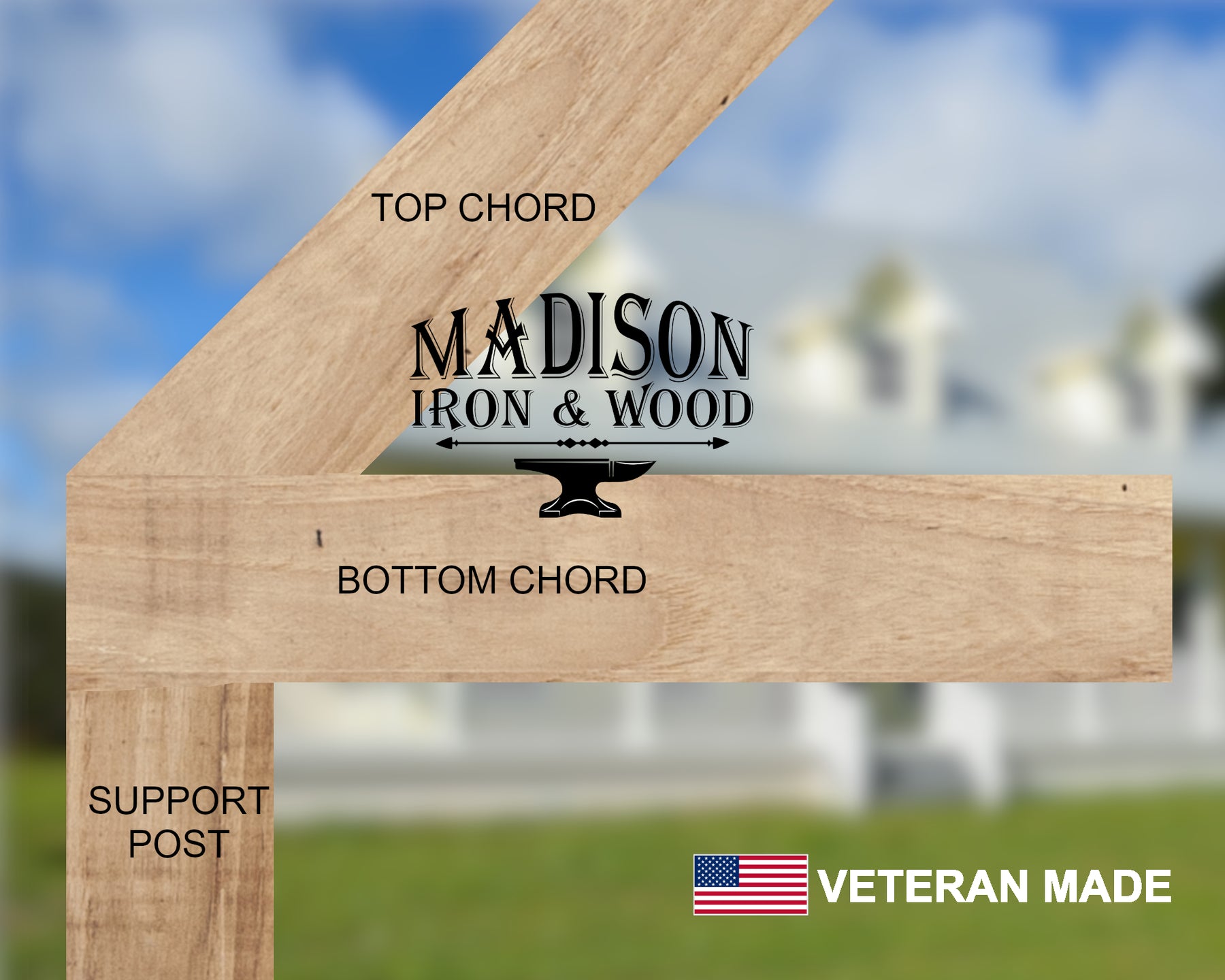

If you have a different size Bottom Cord (Rafter), Top Cord (Roof top board), Or Support Post Just let us know and we can design a HEEL T plate just for you.

*All images and bracket designs are the sole property of Madison Iron and Wood and shall not be used by any other company, person, or entity without express permission.

}
