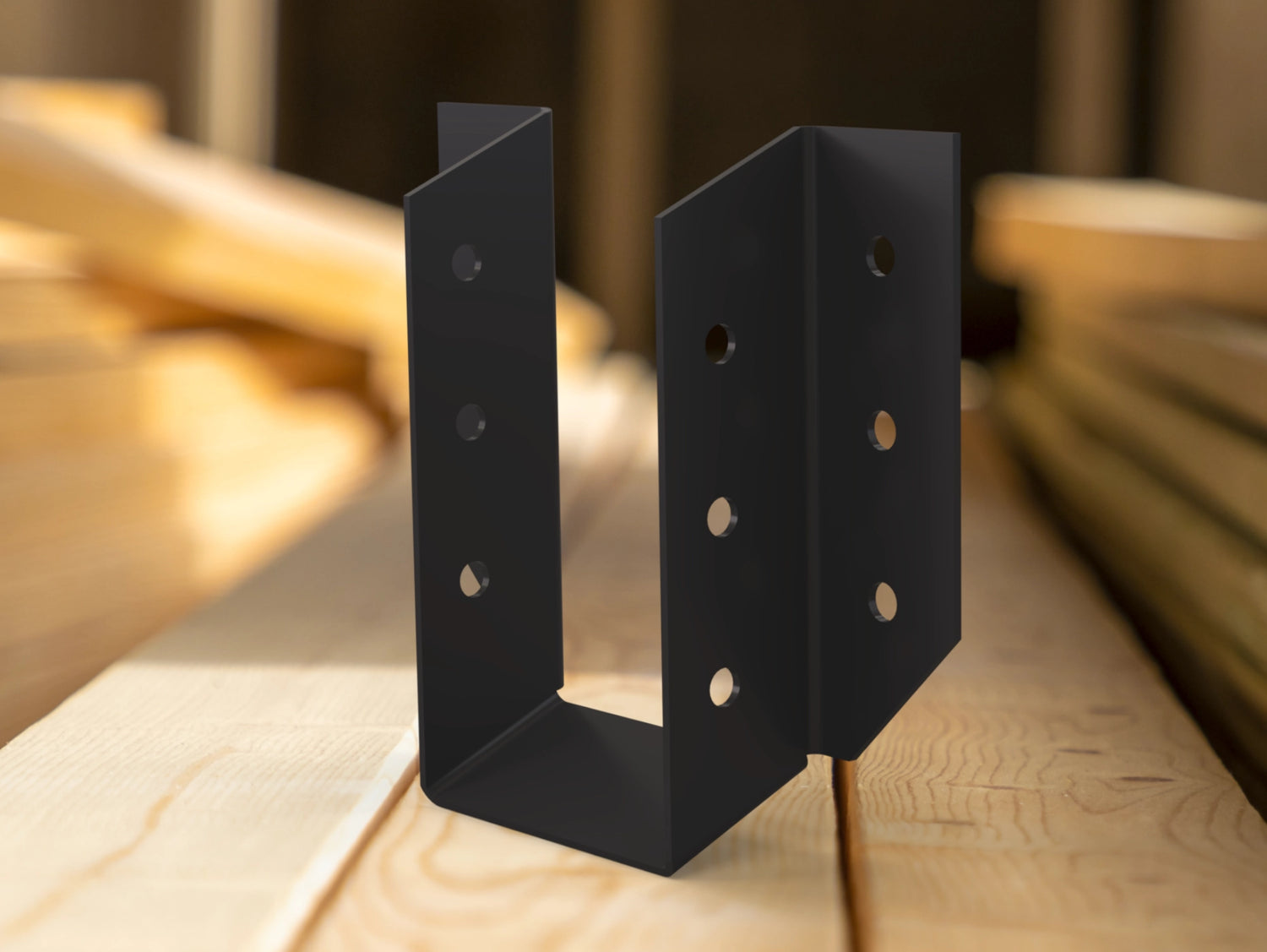

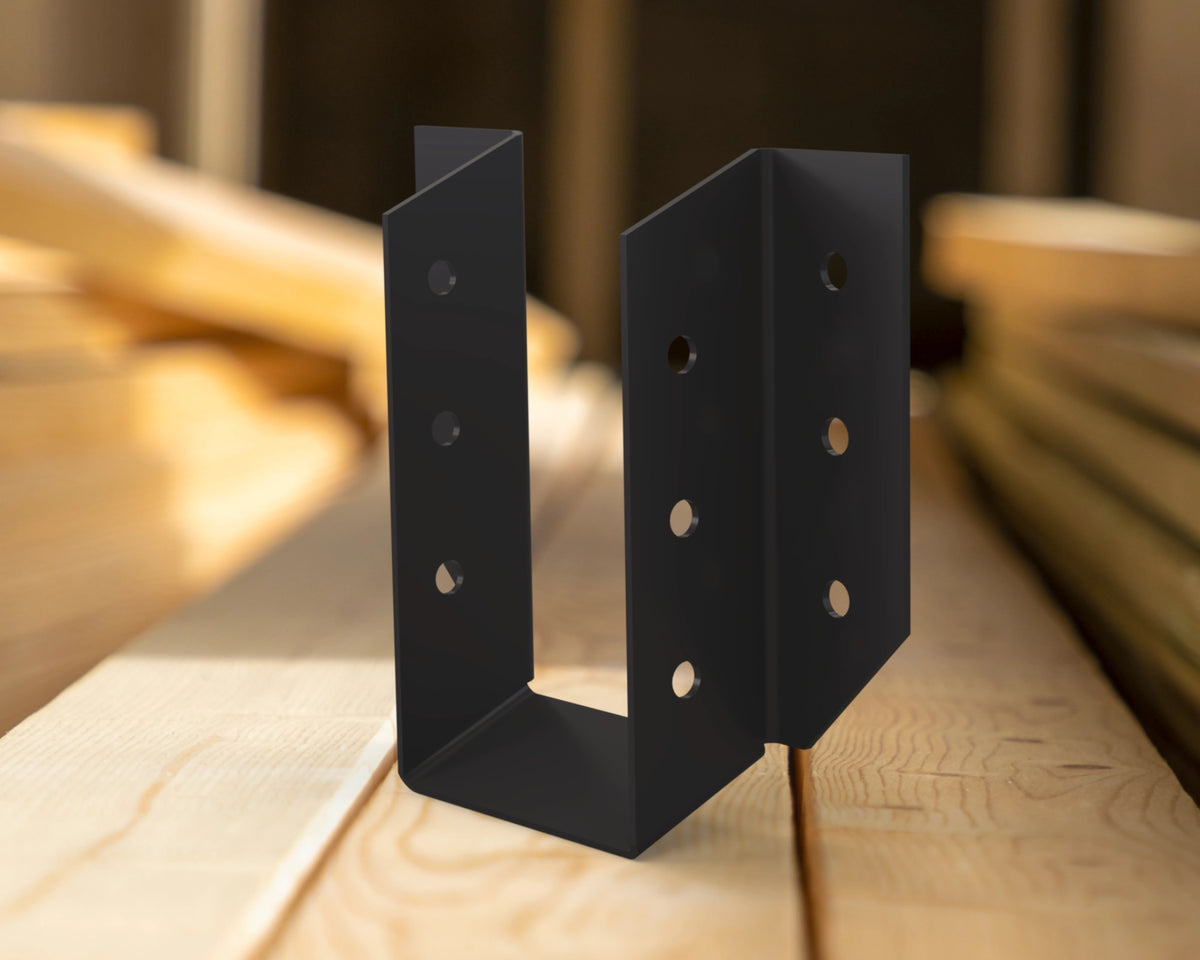

Down Angled Rafter Hanger Brackets - True and Nominal Sizes - Face Mount

Sizes-

• Width (ID of Bracket)- 1-9/16", 2", 3-9/16", 4", 5-9/16", 6"
• Height (ID of Bracket)- 3", 4", 5", 6", 7", 8", 9", 10", 11", 12", 13", 14", 15", 16"
• Angle - 3/12 - 12/12 ceiling pitches
• Custom Sizes Available Upon Request

More Details-

• 12-gauge (1/8") or 1/4" thick steel
• Finished with a thick layer of powder coat paint.
• Hardware not included. Please view our fastener section.
• Made in the USA

View Full Description Below for More Details

Heavy Duty Down-Angled Rafter Hanger – Structural Ridge Beam Saddle Bracket

Secure your roof framing with the professional-grade strength of Madison Iron and Wood Down-Angled Rafter Hangers. Specifically designed for connecting Nominal or True-Sized Rafters to a Ridge Board or Structural Ridge Beam, these face-mount saddle brackets are the premium solution for cathedral ceilings, vaulted porches, custom timber pavilions, stair stringers, roof trusses, rafter brackets, Ridge Beam Brackets...

Custom Built for Your Project (Listing is for One [1] Bracket) Unlike mass-produced, thin-gauge hardware found in big-box stores, our brackets are fabricated to order specifically for your project. We do not "mass produce" our inventory; each piece is individually crafted in our Madison, Indiana shop. This allows us to offer the structural thickness, custom angles, and high-end finishes that industrial manufacturers simply cannot provide.

The Madison Iron and Wood Difference:

• Tailored to Your Pitch: Available in 3/12 to 12/12 ceiling pitches. We specialize in the exact angles and custom sizes that the "one-size-fits-all" brands ignore.

• Superior Material Thickness: Choose between Heavy Duty 12-Gauge or ultra-premium 1/4-inch Thick American Steel for maximum structural rigidity and peace of mind.

• Offset Hole Pattern: Our engineered cradle design features offset mounting holes, ensuring wood screws or bolts never collide during installation for a cleaner, more secure connection.



• Industrial UV-Resistant Finish: Finished in a high-durability, baked-on powder coat with UV inhibitors. Unlike standard paint, our finish resists fading and weathering in exposed beam applications.



• Veteran-Owned Craftsmanship: Every bracket is made-to-order, giving you a level of quality and customization (hole sizes, colors, dimensions) that mass-market hardware can't match.



Technical Specifications:

• Quantity: Listing is for one (1) individual bracket.

• Mounting Type: Face Mount Saddle Bracket

• Lumber Compatibility: Sized for Nominal 2x6, 4x6, and 6x6 rafters, as well as True-Sized Rough Cut lumber.

• Width Options (ID): 1-9/16", 2", 3-9/16", 4", 5-9/16", 6"

• Height Options (ID): 3" to 16"

• Hardware Ready: Pre-drilled for 5/16" lag bolts (Matching lag bolts available separately).

Custom Orders: Need a specific angle, a unique flange width, or custom hole sizes? We specialize in one-off fabrication to solve your specific structural needs. Contact us at 812-748-2021 or mail@madisonironandwood.com for a custom quote.

Thickness- 12-gauge steel

Our brackets are made from American made steel and painted with a layer of powdercoat paint. We do not guarantee that our brackets will add total structural strength to your project.
